How to Create Printed Circuit Boards

So you have that circuit designed and ready. You did some computer aided simulations and the circuit is working great. Only one thing left! You need to create a printed circuit board for the circuit so you can see it in action! Whether your circuit is a project for school/college or is a final piece of electronics in a professional product for your company, implementing your circuit on a PCB will give it a much better professional look besides giving you an idea of how the finished product will look like!

This article will show you the different methods by which you can create a printed circuit board (PCB) for an electrical/electronic circuit using different methods suitable for small to large circuitry.

EditSteps

EditPrinting the Circuit Board

  1. Choose a method to use for creating the PCB. Your choice will usually be based on the availability of materials needed by the method, the technical difficulty level of the method or the quality of PCB you desire to obtain. Here's a brief summary of the different methods and their main features that will help you decide:
    Create Printed Circuit Boards Step 1 Version 2.jpg
    1. Acid etching method: this method requires extreme safety measure, the availability of many materials such as the etchant and it is somewhat slow. The quality of PCB obtained varies according to the materials you use but generally, it is a good method for simple to intermediate levels of complexity circuits. Circuits involving more close wiring and tiny wires usually use other methods.
    2. UV etching method: this method is used for transposition of your PCB layout onto your PCB board and requires more expensive materials that might not be available everywhere. However, the steps are relatively simple and can produce finer and more complicated circuit layouts.
    3. Mechanical etching/routing method: this method requires special machines that will mechanically etch away unnecessary copper from the board or route empty separators between wires. It can be expensive if you intend to buy one of those machines and usually leasing them requires the availability of a workshop nearby. However, this method is good if you need to create many copies of the circuit and also can produce fine PCBs.
    4. Laser etching method: this is usually used by large production companies, but can be found on some universities. The concept is similar to mechanical etching but LASER beams are used to etch the board. It is usually hard to access such machines, but if your local university is one of the lucky ones having such machine, you can use their facilities if they allow it.
  2. Create the PCB Layout of your circuit. For acid etching, you need to draw the circuitry using an etchant resistant material. Special markers can be found easily for this specific purpose if you intend to do the drawing by hand (not appropriate for medium to large circuits). Laser printers' ink is the most commonly used material however. This is usually done by converting your circuit's schematic diagram into a PCB layout using PCB layout software. There are many open source software packages for PCB layout creation and design, some are listed here to give you a head-start:
    Create Printed Circuit Boards Step 2 Version 2.jpg
  3. Once you are happy with the schematic on your computer, match the size of the diagram on the software so that both the circuit board and the paper will have the needed sizes.
    Create Printed Circuit Boards Step 3 Version 2.jpg
  4. Print out the diagram from the software's File menu. Print it out on a glossy paper, such as magazine paper. You should ensure the circuit is mirrored before doing that (most PCB layout programs have this as an option when printing). Once printed, make sure you don’t touch the ink part on the paper as it can get on your hands.
    Create Printed Circuit Boards Step 4.jpg
  5. Align the circuit diagram on the paper with the circuit board (the diagram should be facing the copper part of the circuit board). Start up your iron. Set the iron on the cotton setting and wait until it heats up.
    Create Printed Circuit Boards Step 5 Version 2.jpg
  6. Once heated, carefully place the iron on top of the paper which is on top of the circuit board.
    Create Printed Circuit Boards Step 6 Version 2.jpg
  7. Place the iron there for about 30-45 seconds (depending on your iron).
    Create Printed Circuit Boards Step 7 Version 2.jpg
  8. After lifting the iron, put it aside carefully and take the circuit board to your nearest source of water. Be careful, the paper will be hot. The paper should be stuck to the circuit board, don’t rip it out.
    Create Printed Circuit Boards Step 8 Version 2.jpg
  9. Start the water flow and hold the circuit board below it. An alternative approach is to immerse the board and paper in hot water for a few minutes (up to 10 minutes).
    Create Printed Circuit Boards Step 9 Version 2.jpg
  10. Slowing start taking off the paper and soon all of the paper should come off. If certain areas seem particularly difficult to peel off, you can try soaking a bit more. If everything went well, you will have a copper board with your PCB pads and signal lines traced out in black toner.
    Create Printed Circuit Boards Step 10 Version 2.jpg
  11. Dry the board. Get the big chunks of water off by softly wiping with a napkin or just letting them fall out. It shouldn’t take more than 30 seconds and it should not be vigorous or else the ink on to the circuit might come off.
    Create Printed Circuit Boards Step 11 Version 2.jpg
  12. Etch the board using one of the methods below. This process removes any unnecessary copper from the board leaving only wiring of the final circuit.
    Create Printed Circuit Boards Step 12 Version 2.jpg

EditEtching with Acid

  1. Choose your etching acid. Ferric chloride is a common choice for an etchant. However, you can use Ammonium Persulfate crystals or other chemical solutions. No matter what choice for the chemical etchant, it will always be a dangerous material, so besides following the general safety precautions mentioned in this article, you should also read and follow any additional safety instructions that come with the etchant.
    Create Printed Circuit Boards Step 13 Version 2.jpg
  2. Prepare the acid etchant. Depending on the acid etch that you choose, there might be additional instructions. For example, some crystallized acids require being dissolved in hot water, but other etchants are ready to use.
    Create Printed Circuit Boards Step 14 Version 2.jpg
  3. Submerge the board in the acid.
    Create Printed Circuit Boards Step 15 Version 2.jpg
  4. Make sure to stir every 3-5 minutes.
    Create Printed Circuit Boards Step 16 Version 2.jpg

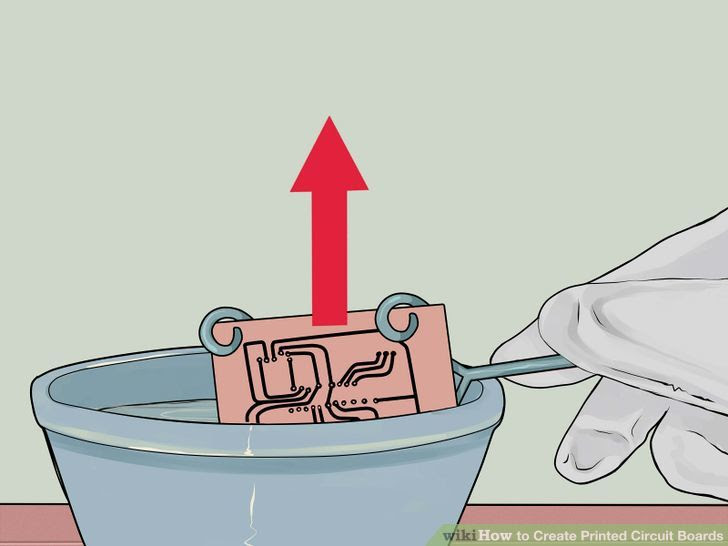

  5. Take the board out and wash it when all unnecessary copper is etched away from the board.
    Create Printed Circuit Boards Step 17 Version 2.jpg
  6. Remove the insulating drawing material used. There are special solvents available for almost all types of insulating drawing material used in drawing PCB layouts. However, if you don't have access to any of these materials, you can always use a sandpaper (a fine one).
    Create Printed Circuit Boards Step 18.jpg

EditEtching with Ultra-Violet Transposition

  1. To apply with this method, you will need a photosensitive (positive or negative) laminated PCB card, an UV insulator and a transparent sheet and distilled water. You may find the cards ready to use (they are covered with a black nylon sheet), or photosensitive spray to apply on the copper side of an ordinary blank PCB card. Take care to purchase also a photorevelator compatible with the photo spray or the PCB photosensitive coating.
    Create Printed Circuit Boards Step 19.jpg
  2. With a laser printer, draw the PCB layout on the transparent sheet, in positive or negative mode, according to the photosensitive coating of the card.
    Create Printed Circuit Boards Step 20.jpg
  3. Cover the copper side of the board with the printed transparent sheet.
    Create Printed Circuit Boards Step 21.jpg
  4. Place the board in the UV insulator machine/chamber.
    Create Printed Circuit Boards Step 22.jpg
  5. Turn on the UV machine. It will irradiate your board with the UV for the specified amount of time. Most of the UV insulators are equipped with an adjustable timer. Generally, 15 to 20 minutes will be widely sufficient.
    Create Printed Circuit Boards Step 23.jpg
  6. Once done, remove the board from the UV insulator. Clean the copper side of the card with the photorevelator, then gently rinse the revelated PCB card with distilled water prior to place it in its acid bath. The parts destroyed by the UV irradiation will be etched by the acid.
    Create Printed Circuit Boards Step 24.jpg
  7. The further steps to follow are described in the acid etching method specific steps 3 to 7.
    Create Printed Circuit Boards Step 25.jpg

EditFinishing the Board

  1. Drill mount points. Drilling machines used for that are usually custom machines designed specifically for this purpose. However, with some adjustments a usual drilling machine will do the job at home.
    Create Printed Circuit Boards Step 26.jpg
  2. Mount and solder the electronic components on board.
    Create Printed Circuit Boards Step 27.jpg

EditWarnings

  • If you are using the acid etching method, you need to take the following precautions:
    • Always store your acid in a safe cold place. Use glass containers.
    • Label your acid and store it somewhere out of the reach of children.
    • Do not dispose of your used acid in the home drains. Instead store it and when you have some amount of used acid, take it to your recycling center/dangerous waste disposal facility.
    • Use gloves and air masks when working with acid etchants.
    • Be extremely careful when mixing and stirring the acid. Do not use metallic objects and do not put the container on the edge of the disk.
    • While irradiating your PCB with UV, take an absolute care to not have a direct visual contact with the UV generating part of the insulator/chamber, or use special anti-UV protection glasses. If you have to check your PCB during the process, better stop the machine prior to open it.
